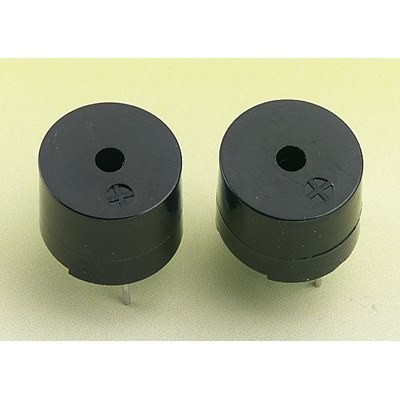

Miniature Electromagnetic Transducer
Miniature coil & diaphragm transducer. The device is externally driven by an audio frequency waveform.
| Rated voltage: | 1.5V |
| Operating voltage: | 1 to 2V |
| Operating current (mA): | 30 max. |
| Resonant frequency (kHz): | 2048 Hz |
| Coil resistance: | 16±4W @ 1.5V |
| Sound output at 10cm: | 85db min. |
| Temp. range: | -20°C to +60°C |
| Dims: | 12mm dia. x 8.5mm h. |
| Pin pitch: | 6.5mm |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-880 |
|---|---|
|
Model
|
KP12185 |
|
Type
|
PCB mtg. |
