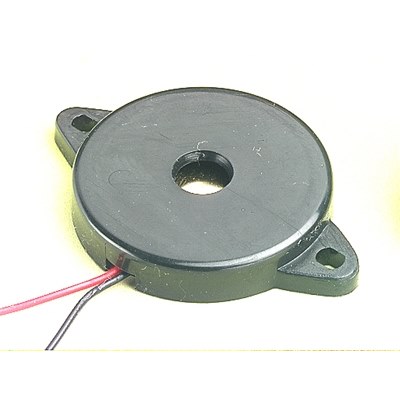

Piezo Transducers - 30mm
Externally driven type. Requires an external oscillator circuit.
Red & Black wire leads 150mm.
Fixing centres 35.5mm
| Operating voltage (V) p-p: | 3 to 30 |
| Operating current (mA): | 2 |
| Oscillating frequency (kHz): | 4.0kHz ± 500Hz |
| Sound output at 20 cm 9V p-p (db) min: | 80 |
| Temp. range: | -20°C to +65°C |
| Dims: | 30mm dia. x 6.5mm h. |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-127 |
|---|---|
|
Model
|
HPE-127 |
|
Type
|
Wire-lead |
