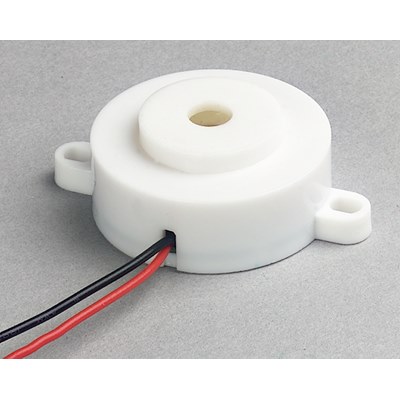

Piezo Buzzer - 32mm
by Plustone
Low cost miniature piezo buzzer with flying leads. Built in drive circuit.RoHS compliant
| Operating voltage | 3-24V DC |
| Operating current | 15mA @ 12Vdc. |
| Frequency | 3.7±0.5kHz |
| Sound output | 90db at 30cm @12V |
| Temp. range | -20°C to +60°C |
| Dimensions | 32mm dia. x 14mm high |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-007 |
|---|---|
|
Model
|
3210 |
|
Type
|
Piezo buzzer |
