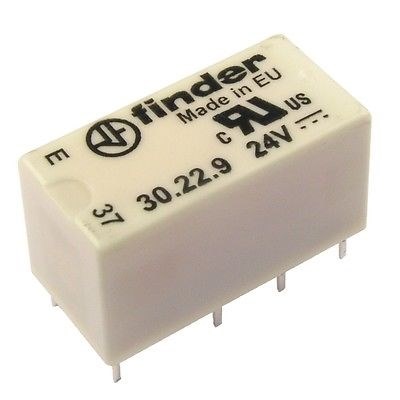

Finder 30.22 Relays DPDT 1.25A BT47W/6
by Finder
Finder 30.22 series Double pole changeover IP67 sealed PCB relay, DIL plug-in or direct PCB mounting. Fluxproof, hermetically sealed housing. DIL pins on 0.1" grid. Applications include telecom, alarm and computer circuits. UL & CSA approved.
| Contact form: | 2C (DPDT) |
| Contact rating: | 1.25A @ 250VAC |
| Contact material: | AgNi+Au |
| Coil operating range: | 75%-120% |
| Operate/release: | 15mS/10mS |
| Coil power consumption: | 400mW |
| Mechanical life: | >2,000,000 operations |
| Temperature range: | -40°C to +85°C |
| Dimensions: | 20.3L x 11.4H x 10.4W |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 820-820 | 820-823 | 820-825 |
|---|---|---|---|
|
Finder Part no.
|
30.22.9.005.0010 | 30.22.9.012.0010 | 30.22.9.024.0010 |
|
Switching capacity
|
2A | 2A | 2A |
|
Coil resistance
|
62Ω | 360Ω | 1440Ω |
|
Coil Voltage
|
5VDC | 12VDC | 24VDC |
