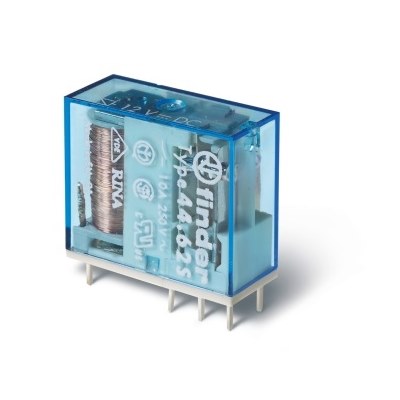

Finder 44.62 Relays - DPCO 10A
by Finder
A miniature double pole relay of the same style as the 40.52 series above, but with 10A switching capacity. 6kV-8mm coil-contact isolation. Flux-tight base with pre-tinned terminals.
| Contact form: | 2C (DPDT) |
| Contact rating: | 10A 250VAC/30VDC |
| Contact material: | AgNi. |
| Coil operating range: | 70-150% |
| Operate/release: | 10ms/12ms |
| Temperature range: | -40°C to +85°C |
| Power consumption: | 500mW |
| Dimensions: | 29L x 25H x12.4W |
VDE, BEAB, UL and all other approvals listed below.
RoHS compliant
**Available until stocks exhausted**
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 820-068 |
|---|---|
|
Finder Part no.
|
44.62.7.006.4000 |
|
Switching capacity
|
2500VA |
|
Coil resistance
|
75Ω |
|
Coil Voltage
|
6VDC |
Associated Products
Finder relay DPDT 6V 10A PCB 40.62.7.006.4000
From
£
4.04
