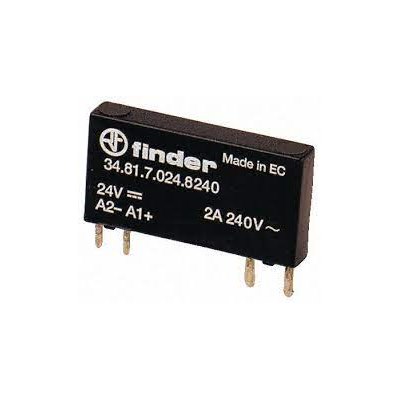

Finder 34.81 Relays SPST Solid State 2A
Single pole solid state relay in an ultra-slim (5mm) package. Silent high speed switching with long electrical life. Single pole normally open contact configuration. Flux-tight base with pre-tinned terminals. Dielectric strength between input and output 2.5kV. Protection category RT111 wash-tight. Direct PCB mounting, or use with Finder 93.11 type base (order code 820-570).
RoHS compliant
| Output circuit | 820-440 | 820-444 |
| Contact form: | 1NO (SPST) | 1NO (SPST) |
| Rating: | 2A 24VDC | 2A 240VAC |
| Switching voltage range | 1.5-24VDC | 12-240VAC |
| Input circuit | ||
| Operating range: | 16-30VDC | 16-30VDC |
| Control current: | 7mA | 7mA |
| Operate/release: | 0.1ms/0.3ms | 12ms/12ms |
| Temperature range: | -20°to +60°C | -20° to +60°C |
| Dimensions: | 28L x 15.5H x 5W | 28L x 15.5H x 5W |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 820-444 |
|---|---|
|
Finder Part no.
|
34.81.7.024.8240 |
|
Switching capacity
|
2A |
|
Coil resistance
|
3200Ω |
|
Coil Voltage
|
240VAC |
