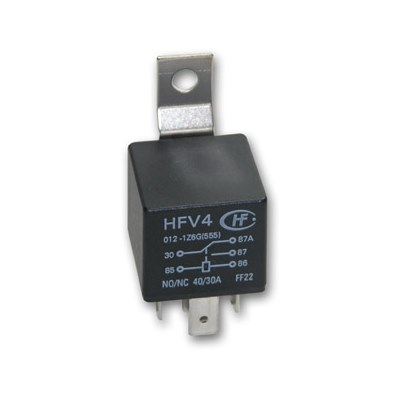

Hongfa Automotive Relays HFV4 - SPCO 40A
by Hongfa
Flange mounting single pole changeover automotive relay.
Switching capability up to 40A. Faston 6.3mm tab terminals.
ELV and RoHS compliant
| Contact form: | 1A (SPCO) |
| Contact rating: | 40A/14VDC |
| Contact material: | AgSnO2 |
| Operate/release: | 7ms/5ms |
| Coil consumption: | 1800mW |
| Mechanical life: | 1x105 operations |
| Temperature range: | -55°C to +85°C |
| Dimensions: | 26.2L x 23.7H x 26.2W |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 821-330 | 821-331 |
|---|---|---|
|
Max. Switching Capacity
|
40A/75VDC | 40A/75VDC |
|
Coil Resistance
|
22 ohms | 90 ohms |
|
Coil Voltage
|
6VDC | 12VDC |
