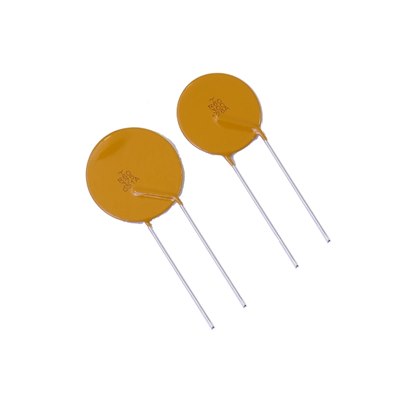

Hitano Resettable Fuses RDL60V Series 60V
Resettable overcurrent circuit protection for a wide range of equipment. The fuses are reset by removing the supply voltage and fault condition. Temp. range -40°C to +85°C. Max. current 40A.
Lead wire diameter 0.51mm.
RoHS compliant
| Order code | I hold (A) | Dim. A max. | Dim. B max. | Dim. C (±0.7mm) | Dim. D min. | Dim. E max | Raychem cross-ref. |
| 670-002 | 0.10 | 7.4 | 12.7 | 5.1 | 7.6 | 3.1 | RXE010 |
| 670-004 | 0.17 | 7.4 | 12.7 | 5.1 | 7.6 | 3.1 | RXE017 |
| 670-006 | 0.20 | 7.4 | 12.7 | 5.1 | 7.6 | 3.1 | RXE020 |
| 670-008 | 0.25 | 7.4 | 12.7 | 5.1 | 7.6 | 3.1 | RXE025 |
| 670-010 | 0.30 | 7.4 | 13.4 | 5.1 | 7.6 | 3.1 | RXE030 |
| 670-012 | 0.40 | 7.6 | 13.7 | 5.1 | 7.6 | 3.1 | RXE040 |
| 670-014 | 0.50 | 7.9 | 13.7 | 5.1 | 7.6 | 3.1 | RXE050 |
| 670-016 | 0.65 | 9.7 | 15.2 | 5.1 | 7.6 | 3.1 | RXE065 |
| 670-018 | 0.75 | 10.4 | 16.0 | 5.1 | 7.6 | 3.1 | RXE075 |
| 670-020 | 0.90 | 11.7 | 16.7 | 5.1 | 7.6 | 3.1 | RXE090 |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Each Exc VAT (Inc VAT)
1+
100+
500+
Add to basket
Request Lead Time
Order Code:
Description:
0.1A RDL60V101 Resettable Fuse 60V
0.1A RDL60V101 Resettable Fuse 60V
£0.265
(£0.318)
£0.210
(£0.252)
£0.182
(£0.218)
Price Each Exc VAT (Inc VAT)
Stock Qty: 1594
1+ @ £0.265
(£0.318)
100+ @ £0.210
(£0.252)
500+ @ £0.182
(£0.218)
hide price breaks
view price breaks
Stock Qty: 1594
Order Code:
Description:
0.17A RDL60V017 Resettable Fuse 60V
0.17A RDL60V017 Resettable Fuse 60V
£0.265
(£0.318)
£0.210
(£0.252)
£0.182
(£0.218)
Price Each Exc VAT (Inc VAT)
Stock Qty: 2214
1+ @ £0.265
(£0.318)
100+ @ £0.210
(£0.252)
500+ @ £0.182
(£0.218)
hide price breaks
view price breaks
Stock Qty: 2214
Order Code:
Description:
0.2A RDL60V020 Resettable Fuse 60V
0.2A RDL60V020 Resettable Fuse 60V
£0.265
(£0.318)
£0.210
(£0.252)
£0.182
(£0.218)
Price Each Exc VAT (Inc VAT)
Stock Qty: 855
1+ @ £0.265
(£0.318)
100+ @ £0.210
(£0.252)
500+ @ £0.182
(£0.218)
hide price breaks
view price breaks
Stock Qty: 855
Order Code:
Description:
0.25A RDL60V025 Resettable Fuse 60V
0.25A RDL60V025 Resettable Fuse 60V
£0.265
(£0.318)
£0.210
(£0.252)
£0.182
(£0.218)
Price Each Exc VAT (Inc VAT)
Stock Qty: 99
1+ @ £0.265
(£0.318)
100+ @ £0.210
(£0.252)
500+ @ £0.182
(£0.218)
hide price breaks
view price breaks
Stock Qty: 99
Order Code:
Description:
0.3A RDL60V030 Resettable Fuse 60V
0.3A RDL60V030 Resettable Fuse 60V
£0.265
(£0.318)
£0.210
(£0.252)
£0.182
(£0.218)
Price Each Exc VAT (Inc VAT)
Stock Qty: 897
1+ @ £0.265
(£0.318)
100+ @ £0.210
(£0.252)
500+ @ £0.182
(£0.218)
hide price breaks
view price breaks
Stock Qty: 897
Order Code:
Description:
0.4A RDL60V040 Resettable Fuse 60V
0.4A RDL60V040 Resettable Fuse 60V
£0.288
(£0.346)
£0.230
(£0.276)
£0.195
(£0.234)
Price Each Exc VAT (Inc VAT)
Stock Qty: 444
1+ @ £0.288
(£0.346)
100+ @ £0.230
(£0.276)
500+ @ £0.195
(£0.234)
hide price breaks
view price breaks
Stock Qty: 444
Order Code:
Description:
0.5A RDL60V050 Resettable Fuse 60V
0.5A RDL60V050 Resettable Fuse 60V
£0.288
(£0.346)
£0.230
(£0.276)
£0.195
(£0.234)
Price Each Exc VAT (Inc VAT)
Stock Qty: 138
1+ @ £0.288
(£0.346)
100+ @ £0.230
(£0.276)
500+ @ £0.195
(£0.234)
hide price breaks
view price breaks
Stock Qty: 138
Order Code:
Description:
0.65A RDL60V065 Resettable Fuse 60V
0.65A RDL60V065 Resettable Fuse 60V
£0.288
(£0.346)
£0.230
(£0.276)
£0.195
(£0.234)
Price Each Exc VAT (Inc VAT)
Stock Qty: 1563
1+ @ £0.288
(£0.346)
100+ @ £0.230
(£0.276)
500+ @ £0.195
(£0.234)
hide price breaks
view price breaks
Stock Qty: 1563
Order Code:
Description:
0.75A RDL60V075 Resettable Fuse 60V
0.75A RDL60V075 Resettable Fuse 60V
£0.288
(£0.346)
£0.230
(£0.276)
£0.195
(£0.234)
Price Each Exc VAT (Inc VAT)
Stock Qty: 131
1+ @ £0.288
(£0.346)
100+ @ £0.230
(£0.276)
500+ @ £0.195
(£0.234)
hide price breaks
view price breaks
Stock Qty: 131
Order Code:
Description:
0.9A RDL60V090 Resettable Fuse 60V
0.9A RDL60V090 Resettable Fuse 60V
£0.288
(£0.346)
£0.230
(£0.276)
£0.195
(£0.234)
Price Each Exc VAT (Inc VAT)
Stock Qty: 352
1+ @ £0.288
(£0.346)
100+ @ £0.230
(£0.276)
500+ @ £0.195
(£0.234)
hide price breaks
view price breaks
Stock Qty: 352
Product Specifications
| Specification | 670-002 | 670-004 | 670-006 | 670-008 | 670-010 | 670-012 | 670-014 | 670-016 | 670-018 | 670-020 |
|---|---|---|---|---|---|---|---|---|---|---|
|
Hitano model
|
RDL60V101 | RDL60V017 | RDL60V020 | RDL60V025 | RDL60V030 | RDL60V040 | RDL60V050 | RDL60V065 | RDL60V075 | RDL60V090 |
|
Hold Current
|
0.1A | 0.17A | 0.2A | 0.25A | 0.3A | 0.4A | 0.5A | 0.65A | 0.75A | 0.9A |
|
Trip Current
|
0.2A | 0.34A | 0.4A | 0.5A | 0.6A | 0.8A | 1.0A | 1.3A | 1.5A | 1.8A |
|
Rated Voltage
|
60V | 60V | 60V | 60V | 60V | 60V | 60V | 60V | 60V | 60V |
