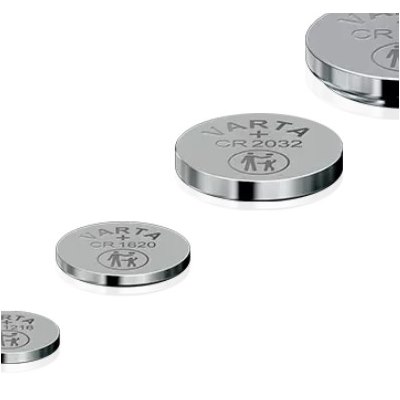

VARTA Lithium Coin Cells
Non-rechargeable lithium manganese cells, ideally suited to applications requiring a low quiescent current with short pulses of up to a few hundred µA on demand. Typical applications are calculators, watches, and some photographic equipment. PCB mounting types are suitable for more permanent applications, e.g. memory backup. RoHS exempt.
| Dimensions(mm): | Height | Dia. | Pin pitch | Pin dia. |
| CR2016 | 1.6 | 20.0 | - | - |
| CR2032PCB | 3.2 | 20.0 | 10.0 x 17.8 | 1.0 |
| CR2032SLF | 4.2 | 21.5* | 10.0 x 4.2 | 1.0 |
| CR2430PCB | 6.5* | 24.5 | 10.0 x 17.8 | 1.0 |
* Overall height above PCB.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 460-233 | 460-240 | 460-241 | 460-243 |
|---|---|---|---|---|
|
Capacity mAh
|
90 | 230 | 230 | 280 |
|
Voltage
|
3.0 | 3.0 | 3.0 | 3.0 |
|
Type
|
CR 2016 | CR 2032PCB(Horiz.) | CR 2032SLF(Vert.) | CR 2430PCB (Horiz) |
