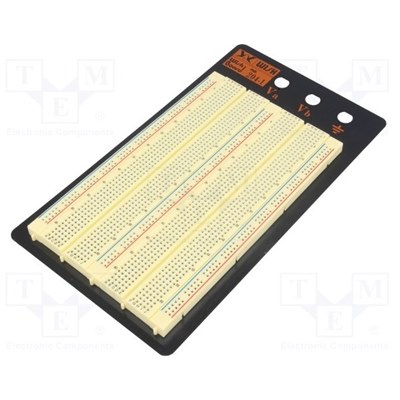

WBU204 Prototyping Board

Scroll Down for Pricing Options

White high durability prototyping board enabling a quick and easy means of experimenting, building and testing circuit designs. Mounted on a heavy-duty aluminium base with non-slip feet, and 4 colour coded 4mm terminals for power connections. Contact positions are identified by colour-coded alphanumeric grids. Total 1660 tie points.

  • Low-static CMOS safe polyacetal (POM) plastic body

  • Accepts most electronic components including IC's and transistors

  • Contacts accept solid wires or leads of 0.3 to 0.8mm diameter

  • Nickel plated phosphor bronze contacts will withstanding up to 5,000 insertion cycles

  • 2 terminal strips (1260 tie points) 4 distribution strips (400 tie points)
Dimensions (mm): 215L x 130W x 31H

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket
Request Lead Time
Price Each Exc VAT (Inc VAT)
Stock Qty: 56

Product Specifications

Specification 500-015
PBU 204 Proto-board
