Zero ohm links
by Hitano
The Hitano Zero Ohm Link series provides a reliable, automated solution for bridging circuit paths on printed circuit boards. While physically identical in size and shape to the standard CR25 (0.25W) resistor range, these components are designed with a near-zero resistance (maximum $0.005\Omega$), acting as a high-current jumper.

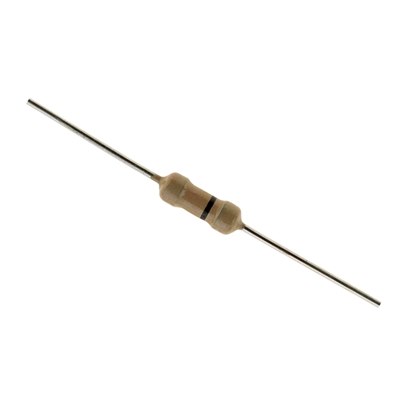

Identified by a single distinctive black band, these links allow engineers to use standard automated insertion machinery rather than manual wire jumpers, significantly increasing production efficiency.
Available in packs of 100 or 1000pcs.
View product specifications
Identified by a single distinctive black band, these links allow engineers to use standard automated insertion machinery rather than manual wire jumpers, significantly increasing production efficiency.
Available in packs of 100 or 1000pcs.
RoHS compliant
Rating: 15A max.
Max. resistance: 0.005Ω
Insulation resistance: 10,000MΩ min.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 480-000 | 484-000 |
|---|---|---|
|
Value
|
Pack x 100 zero-ohm 0R | Pack x 1000 zero-ohm 0R |
