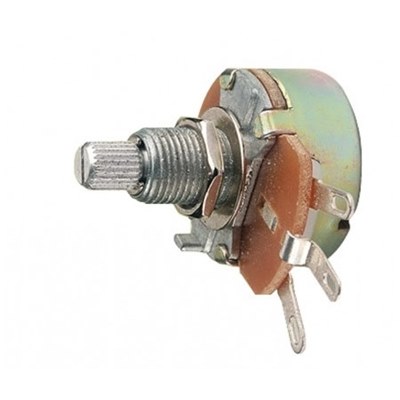

5W Wirewound Potentiometers
High quality wirewound controls, ideal for loudspeaker volume controls,
miniature motor speed controllers, etc. RoHS compliant
| Power rating: | 5W | |
| Resistance tolerance: | ±20% | |
| Spindle rotation: | 300° ±5° | |
| Max. operating voltage: | 120V | |
| Breakdown voltage: | 200V | |
| Dimensions: | Body diameter: | 24mm |
| Body depth: | 11mm | |
| Spindle diameter: | 6mm | |
| Spindle length: | 6.5mm (17 inc. bush) |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 550-050 | 550-051 | 550-053 | 550-055 |
|---|---|---|---|---|
|
Value
|
20Ω | 50Ω | 100Ω | 200Ω |
