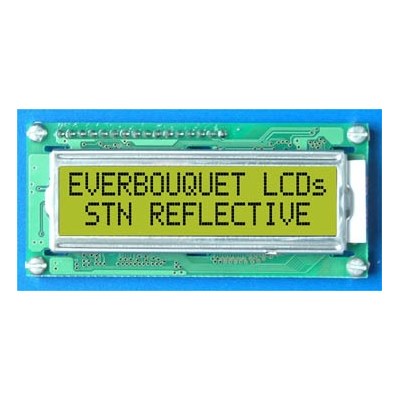

LCD Displays - Reflective Character
A range of easily readable intelligent alphanumeric STN LCD displays. LCD characters are black on yellow-green background.High quality LED displays incorporating high efficiency, high brightness LEDs with a high contrast between digits and background. All types have right hand decimal point.RoHS compliant
| Order code | Lines x characters | Module size | Viewing area | Character size | Connector |
860-381 | 2x16 | 59x29.3x4 | 52x15 | 2.54x4.08 | 15 pin SIL (T) |
860-382 | 2x16 | 80x36x10 | 64.5x16 | 2.96x4.86 | 16 pin SIL (T) |
860-383 | 2x16 | 84x44x10 | 64.5x16 | 2.96x4.86 | 16 pin SIL (B) |
860-384 | 2x16 | 85x36x10 | 64.5x16 | 2.96x4.86 | 14 pin DIL (L) |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 860-381 | 860-382 | 860-383 | 860-384 |
|---|---|---|---|---|
|
Description
|
2 x16 character | 2 x16 character | 2 x16 character | 2 x16 character |
|
Manuf. code
|
MC1602X-SYR | MC1602C-SYR | MC16021E-SYR | MC1602F-SYR |
