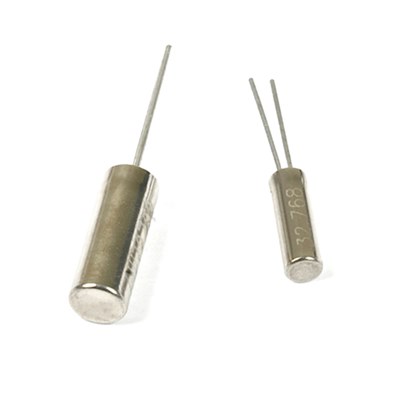

32.768MHz Watch Crystal
![Brand](/images/brands/ARGO.jpg)
Low cost 32.768 kHz watch crystals.
Housed in either 2x6mm (DT-26) or 3x8mm (DT-38) cylindrical metal cases.
Frequency accuracy: ±20ppm @ 25°C
Load capacitance: 12.5pF
Temp. range: -20 to +70°C
Lead dims: 8.5L x 3.0mm dia.
View product specifications
Housed in either 2x6mm (DT-26) or 3x8mm (DT-38) cylindrical metal cases.
Frequency accuracy: ±20ppm @ 25°C
Load capacitance: 12.5pF
Temp. range: -20 to +70°C
Lead dims: 8.5L x 3.0mm dia.
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
Specification | 310-005 | 310-005CR6 | 310-006 |
---|---|---|---|
Description
|
Watch Crystal 32.768KHz (3x8mm) | Watch Crystal 32.768KHz (3x8mm) | Watch Crystal 32.768KHz (2x6mm) |
