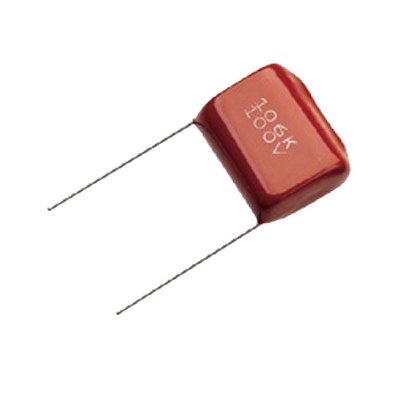

Metallised Polyester MER series
by Hitano
A range of low-cost, high performance metallised polyester film capacitors.capacitors, for professional and commercial applications.
| Tolerance: | ±10% |
| Working voltage: | 100 V, 250 V, 400V, 630 VDC |
| Temp. range: | -40°C to +85°C |
| Climatic category: | IEC68 40/100/56 |
| Lead dia: | 0.6mm (Pitch >10mm) |
| 0.8mm (Pitch >15 mm) | |
| Insulation resistance: | |
| >330nF: >3000MΩ | |
| Dissipation factor: | 1.0% max. at 1KHz |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 140-560 | 140-565 | 140-570 | 140-575 | 140-580 | 140-585 | 140-590 |
|---|---|---|---|---|---|---|---|
|
Lead pitch P (mm)
|
10 | 10 | 10 | 10 | 10 | 15 | 15 |
|
Case Size WxHxT (mm)
|
13x10x5.5 | 13x10x5.5 | 13x10x5.5 | 13x10x6.0 | 13x12x7.0 | 18x16x9.5 | 18x16x9.5 |
|
Value
|
10nF | 22nF | 47nF | 100nF | 220nF | 470nF | 1.0uF |
|
Working voltage
|
630 | 400 | 250 | 250 | 250 | 250 | 100 |
