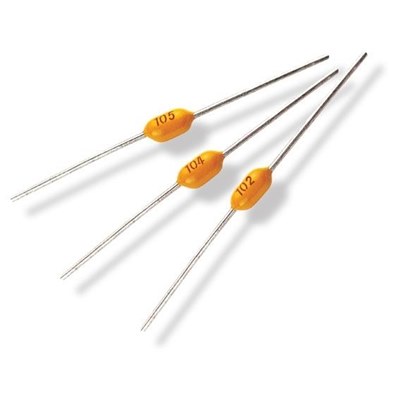

Hitano Ceramic Multilayer capacitors - Axial Lead
by Hitano
Epoxy coated general purpose monolythic ceramic capacitors. Axial lead.
| Dielectric: | Z5U |
| Tolerance: | 20% |
| Working Voltage: | 50V dc |
| Case size: | 4.32L x 2.54 dia. |
| Insulation | |
| resistance: | >10GΩ or |
| 100MΩ/uF | |
| whichever is less. | |
| Dissipation factor: | 5% max at |
| 1kHz,1VRMS. |
Supplied taped, on 5mm spacing.
RoHS compliant
Minimum order quantity 10pcs.
***Available until stocks exhausted***
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 130-105 | 130-110 | 130-115 |
|---|---|---|---|
|
Tolerance
|
±20% | ±20% | ±20% |
|
Manuf. ref.
|
A15Z5U103MAAT05A | A15Z5U473MAAT05A | A15Z5U104MAAT05A |
|
Capacitance
|
10nF | 47nF | 100nF |
