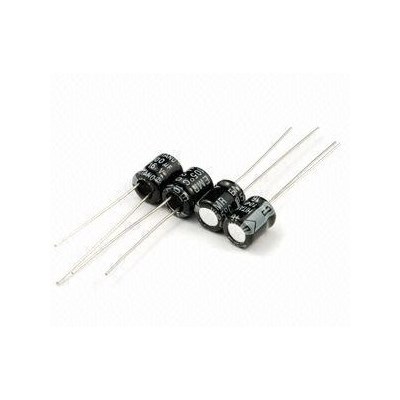

Hitano Electrolytic Submin EMR 105° Series

Brand
Scroll Down for Pricing Options
EMR 0.47uF/50V
Roll over or select images to enlarge

Hitano Electrolytic Submin EMR 105° Series

Brand
Scroll Down for Pricing Options

High performance 105° radial lead electrolytic capacitors. Sub-miniature case size, low profile (7 mm max.)

Load life:>1000 hours @105°C
Temperature range: -40°C to +105°C
Tolerance: ±20%
Leakage current: I = 0.01 CV or 3µA whichever is greater.
Dissipation factor: 10V: 0.20
16V: 0.16
25V: 0.14
35V: 0.12
50V: 0.10
Lead dia:0.45mm (all values)

Hitano EMR series

*Available taped & reeled to special order

RoHS compliant

Minimum order quantity 10pcs.

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 100-444 100-453 100-425 100-435 100-445 100-427 100-438 100-430 100-440 100-402 100-408 100-414 100-419 100-431
Lead dia (mm)
0.45 0.45 0.45 0.45 0.45 0.45 0.45 0.45 0.45 0.45 0.45 0.45 0.45 0.45
Case Size DxL (mm)
4X7 5X7 4X7 4X7 5X7 4X7 5X7 4X7 5X7 4X7 4X7 4X7 4X7 5X7
Voltage
10V 10V 16V 16V 16V 25V 25V 35V 35V 50V 50V 50V 50V 50V
Value
47µF 100µF 10µF 22µF 47µF 10µF 22µF 10µF 22µF 0.47µF 1.0µF 2.2µF 4.7µF 10µF
Lead Pitch P (mm)
1.5 2.0 1.5 1.5 2.0 1.5 1.5 1.5 2.0 1.5 1.5 1.5 1.5 2.0
