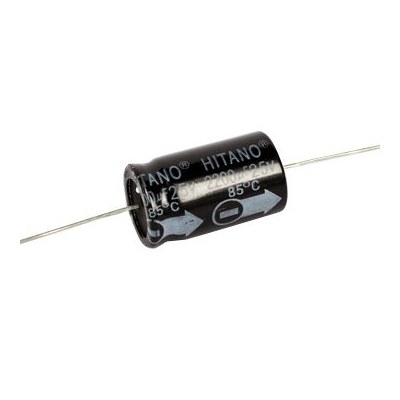

Hitano Electrolytic Axial ECA 85° Series
by Hitano
High quality range of Axial lead electrolytic capacitors.
Manufactured in accordance with Japan Industrial Standard JIC-C5141-1971W.
| Temp. range: | -40°C to +85°C |
| Tolerance: | ±20% |
| Leakage current: | <0.02CV or 3µA |
| whichever is greater. |
RoHS compliant
Available until Stocks Exhausted
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 100-239 | 100-240 | 100-225 | 100-237 | 100-295 |
|---|---|---|---|---|---|
|
Value
|
100uF | 100µF | 22µF | 47µF | 2200µF |
|
Voltage
|
16V | 25V | 50V | 63V | 63V |
|
Case size DxL (mm)
|
6.3x16 | 8x16 | 6x12.5 | 8x16 | 18x37 |
|
Lead dia (mm)
|
0.6 | 0.6 | 0.6 | 0.6 | 0.8 |
