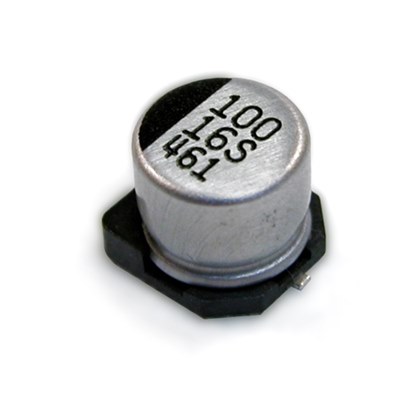

Hitano Electrolytic - EHV SMD 105° Series
by Hitano
105°C surface mount electrolytic capacitors. Supplied on tape for automatic placement, and designed for reflow soldering processes. Hitano EHV series N.B. Supplied only in full reel quantities as listed below. Specifications
| Load life: | >2000 hours @ 105°C |
| Temp. range: | -40°C to +105°C |
| Tolerance: | ±20% @ 20°C/120Hz |
| Leakage current: | < 0.01CV or 3µA whichever greater |
Dimensions (See PDF datasheet)
Case Size | DØ | L | A & C | B | W | P |
A | 4.0 | 5.5 | 4.3 | 5.1 | 0.5-0.8 | 1.0 |
B | 5.0 | 5.5 | 5.3 | 5.9 | 0.5-0.8 | 1.4 |
C | 6.3 | 5.5 | 6.6 | 7.2 | 0.5-0.8 | 2.0 |
D | 8.0 | 6.5 | 8.3 | 9.0 | 0.5-0.8 | 2.2 |
E | 8.0 | 10.5 | 8.3 | 9.0 | 0.8-1.1 | 3.1 |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 100-896 | 100-890 | 100-885 | 100-895 |
|---|---|---|---|---|
|
Reel Qty.
|
2000 | 1000 | 1000 | 500 |
|
Case
|
A | B | C | E |
|
Value
|
1µF | 10µF | 100µF | 100µF |
|
Ripple mA @ 105°C 120Hz
|
8.4 | 24 | 62 | 180 |
|
Voltage
|
50V | 35V | 16V | 35V |
