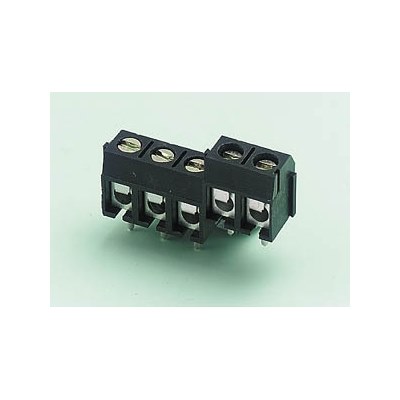

CamdenBoss CTB5201 Low Profile 5mm pitch
by CamdenBoss
CamdenBoss CTB5201
View product specifications
RoHS compliant
| Pin spacing: | 5 mm |
| Pin hole diameter: | 1.1 mm |
| Wire acceptance: | 1.5 mm² |
| Current rating: | 16A/250VAC |
UL approved
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 710-532 | 710-533 | 710-534 |
|---|---|---|---|
|
Dimensions LxWxH (mm)
|
10.7 x 7.5 x 10 | 15.7 x 7.5 x 10 | 20.7 x 7.5 x 10 |
|
Type
|
CTB5201/2 2 way | CTB5201/3 3 way | CTB5201/4 4 way |
