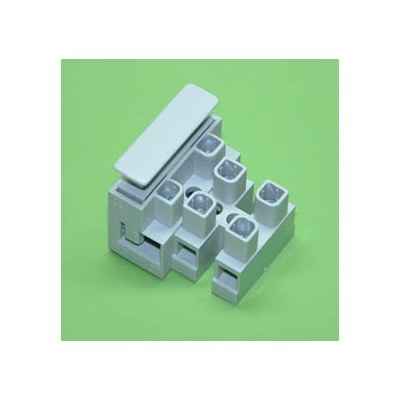

CFTBN/3 3P fused block
by CamdenBoss
CamdenBoss CFTBN series Interlocking terminal blocks moulded in Polyamide,
and incorporating an in-line fuseholder for 5x20mm fuses. The terminal block can be
increased to any number of ways required by the addition of further 1 pole fused blocks,
which are available separately. These terminal blocks are fitted with wire protectors as standard,
and the fuse carrier incorporates a spare fuse holder.
View product specifications
and incorporating an in-line fuseholder for 5x20mm fuses. The terminal block can be
increased to any number of ways required by the addition of further 1 pole fused blocks,
which are available separately. These terminal blocks are fitted with wire protectors as standard,
and the fuse carrier incorporates a spare fuse holder.
- Suitable for glass or ceramic 5 x 20mm fuses
- Meets IEC 257 creepage & clearance requirements (8mm)
- IP20 finger protection.
- All types fitted with earth screw.
- VDE, SEMKO, FEMKO, NEMKO & IMQ approved
RoHS compliant
| Rating: | Fuseholder 13A/250VAC. Terminal 20A/250VAC |
| Insulator material: | UL94-VO flame retardant PA66. |
| Working temperature: | -20 to +125°C |
| Wire acceptance: | 4mm² |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 710-484 |
|---|---|
|
Type
|
CFTBN/3 3 pole fused block |
