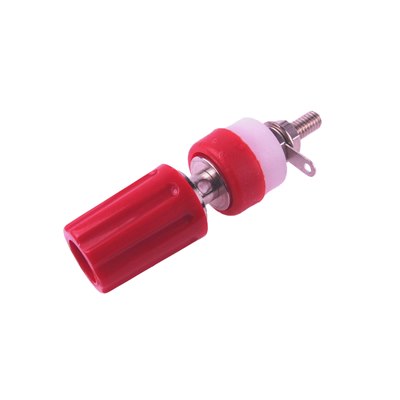

CLIFF TP1 Series 4mm Terminal Posts 15A
by CLIFF

High quality British made terminal posts with integral 4 mm socket.
Will accept all standard 4 mm plugs. Nickel-plated brass construction.
Rated 15A 250 VAC.
Moulded acetal insulators in 6 colours.
Height: | 24-32 mm (above panel) |
Dia. x thread: | 13 mm x 4 BA |
Cross hole: | 2 mm |
Max. panel thickness: | 4 mm |
Cliff TP1 series
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
Specification | 705-070 | 705-071 | 705-072 | 705-073 | 705-074 | 705-075 |
---|---|---|---|---|---|---|
Description
|
4 mm terminal post - red | 4 mm terminal post - black | 4 mm terminal post - green | 4 mm terminal post - blue | 4 mm terminal post - yellow | 4 mm terminal post - white |
