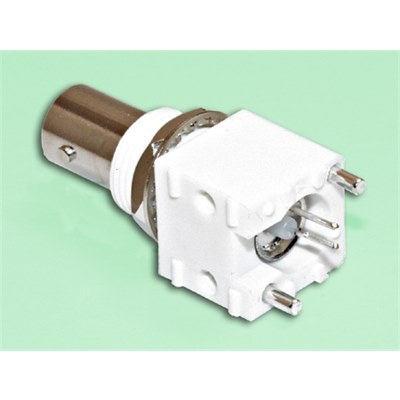

BNC Sockets - Insulated PCB Vertical style
by Micon
High quality vertical PCB mounting sockets, suitable for computer expansion cards etc.
Supplied with nut & washer.
| Housing: | PBT + 30% glass fibre |
| Contact material: | Gold plated phosphor bronze |
| Frequency range: | 0-4GHz |
| Peak voltage: | 500V rms |
| Dielectric withstand voltage: | 1500V rms |
| Nominal impedance: | 50Ω |
| Insulation resistance: | 5000MΩ Min. |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 712-037 |
|---|---|
|
Description
|
BNC Insulated socket vertical style 50Ω |
