Pinrex 2.54mm Jumper links
by Pinrex

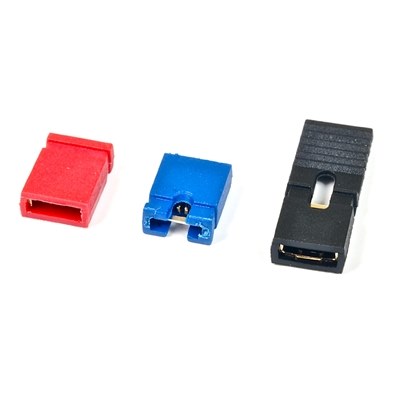

Insulated two way jumper links for PCB connectors incorporating high pressure double sided phosphor bronze, Gold plated contacts.
These are end to end stackable, easily fitted and removed by hand and designed to be used in conjunction with pin headers or similar types of header with 0.635 mm square or round pins on a 2.54 mm pitch.
They provide an alternative on-board programming method to DIL switches and are available in a choice of three styles.
Open types available in red, black and blue.
Closed and pull-tab type available in red and black.
RoHS compliant
View product specifications
These are end to end stackable, easily fitted and removed by hand and designed to be used in conjunction with pin headers or similar types of header with 0.635 mm square or round pins on a 2.54 mm pitch.
They provide an alternative on-board programming method to DIL switches and are available in a choice of three styles.
Open types available in red, black and blue.
Closed and pull-tab type available in red and black.
- Current Rating: 3AMP/PIN
- Insulation Resistance: 5000MΩMin. at DC 500V
- Contact Resistance: 20mΩMax. at DC 100mA
- Dielectric Voltage: 500V AC for 1 minute
- Operation Temperature: -55°C ~ 105°C
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 710-250 | 710-251 | 710-252 | 710-240 | 710-241 | 710-245 | 710-247 |
|---|---|---|---|---|---|---|---|
|
Colour
|
Red | Black | Blue | Red | Black | Red | Black |
|
Description
|
2.54mm / 0.1in. jumper link. Pinrex 200-71-PGBR00 | 2.54mm / 0.1in. jumper link. Pinrex 200-71-PBGB00 | 2.54mm / 0.1in. jumper link. Pinrex 200-71-PBGU00 | 2.54mm / 0.1in. jumper link. Pinrex 200-71-PAGR00 | 2.54mm / 0.1in. jumper link. Pinrex 200-71-PAGB50 | 2.54mm / 0.1in. jumper link. Pinrex 200-71-BDGR00 | 2.54mm / 0.1in. jumper link. Pinrex 200-71-BDGB50 |
