IDC D plug 9 way 982-41-C09401
Roll over or select images to enlarge

High quality connectors for direct ribbon cable mounting. Standard 1.27 mm termination pitch. Tin plated steel shell with flame retardant thermoplastic housing, and cable locking clip. Gold plated contact area, can be used with cables of up to 0.08 mm cross-section.

RoHS compliant

Contact rating:1A
Dielectric strength:500VAC
Insulation resistance:1000MΩ min.
Contact resistance:20mΩ max.
Temperature range:-40° to +105°C

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 740-005 740-010 740-015 740-020 740-025 740-030
Type

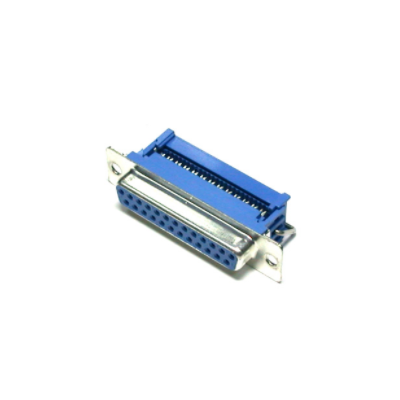

9 way IDC plug Pinrex 982-41-C09401 9 way IDC socket Pinrex 982-41-D09401 15 way IDC plug Pinrex 982-41-C15401 15 way IDC socket Pinrex 982-41-D15401 25 way IDC plug Pinrex 982-41-C25401 25 way IDC socket Pinrex 982-41-D25401
