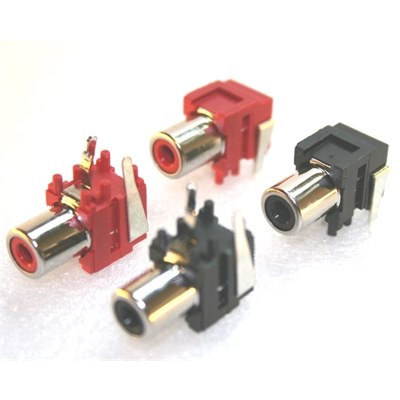

PCB insert phono sockets
by Pinrex
Pinrex PCB Phono sockets are designed for reliable audio and video signal transmission. Featuring a built-in single switch, these sockets allow for automatic signal routing or "auto-detect" functionality when an RCA plug is inserted.
- Rating 2A 12VDC max.
- Life cycle: >4000 cycles
- Nickel plated brass barrel
- Tin plated brass terminals
- Contact resistance: <30mΩ
- Insulation resistance: >100MΩ @500VAC
- Dielectric withstand: 500VAC/1min.
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 705-245 | 705-246 |
|---|---|---|
|
Description
|
PCB phono socket red | PCB phono socket red |
