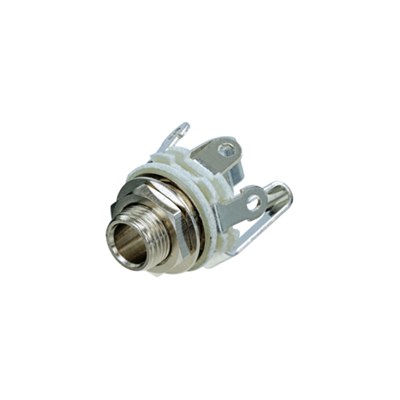

REAN NYS230 1/4" Open Jack Socket, Stereo 3 Pole
by Rean
| Title | NYS230 |
| Connection Type | Jack |
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >2000MΩ(Initial) |
| Dielectric Strength | 500V dc 50HZ |
| Insertion and Withdrawal Force | 5-40N |
| Lifetime | >5000 Mating Cycles |
| Tube | Brass |
| Nut | Brass |
| Washer | Steel |
| Washer | Steel |
| Washer | 3240 Epoxy-phenolic |
| Insulator Washer | 3240 Epoxy-phenolic |
| Contact | Bronze |
| Sleeve Contact | Brass |
| Contact | Bronze |
| Tube | Nickel Plating |
| Nut | Nickel Plating |
| Washer | Nickel Plating |
| Washer | Nickel Plating |
| Contact | Tin and Cer |
| Sleeve Contact | Tin and Cer |
| Contact | Tin and Cer |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 700-544 |
|---|---|
|
weight (g)
|
26g |
|
Manuf. Part No.
|
NYS230 |
