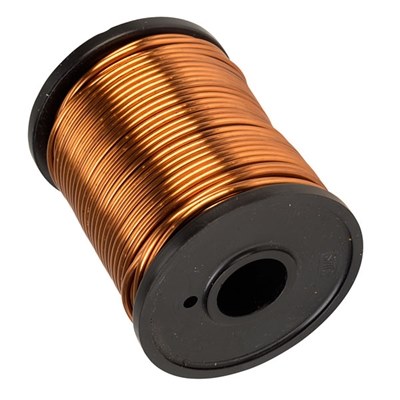

Enamelled Copper Wire 500g Reels
500g reels of Enamelled Copper Wire suitable for winding coils, transformers etc.
WARNING
During the soldering process the polyurethane coating can produce small
quantities of Toluene di-isocyanate (T.D.I).
Fume extraction may be required to ensure permitted safety levels are not exceeded.
RoHS compliant
See below for metric diameter equivalent and reel length.
View product specifications
WARNING
During the soldering process the polyurethane coating can produce small
quantities of Toluene di-isocyanate (T.D.I).
Fume extraction may be required to ensure permitted safety levels are not exceeded.
RoHS compliant
See below for metric diameter equivalent and reel length.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 845-403 | 845-410 | 845-415 | 845-420 | 845-425 | 845-430 | 845-435 | 845-440 | 845-450 | 845-460 | 845-465 | 845-470 | 845-475 | 845-480 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Length (Approx)
|
55m | 47m | 70m | 100m | 125m | 140m | 230m | 290m | 450m | 720m | 910m | 1120m | 1430m | 1850m |
|
SWG (Approx)
|
16 | 18 | 19 | 20 | 21 | 22 | 24 | 25 | 27 | 30 | 32 | 33 | 34 | 36 |
|
Dia. (Approx)
|
1.60 mm | 1.25 mm | 1.00 mm | 0.90 mm | 0.80 mm | 0.71 mm | 0.56 mm | 0.50 mm | 0.40 mm | 0.315 mm | 0.28 mm | 0.25 mm | 0.236 mm | 0.20 mm |
