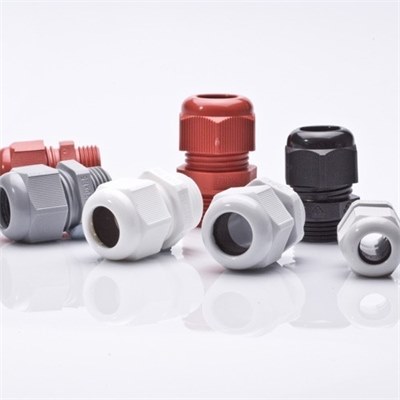

Metric Cable Glands IP68 Nylon
by JPR
Features
Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer.
Colour: Black, available in other colors.
Suited to a variety of applications, and diverse industries.
Function: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal, and then tighten up the nut to hold cables in position.
Feature: Simply and quickly fixed, high degree of the protection IP68 preventing dust and water.
View product specifications
Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer.
Colour: Black, available in other colors.
Suited to a variety of applications, and diverse industries.
Function: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal, and then tighten up the nut to hold cables in position.
Feature: Simply and quickly fixed, high degree of the protection IP68 preventing dust and water.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 782-025 | 782-030 | 782-040 | 782-045 | 782-055 | 782-060 | 782-062 | 782-063 |
|---|---|---|---|---|---|---|---|---|
|
Cable Range Min-Max mm
|
3.0-6.5 | 3.0-6.5 | 5.0-10.0 | 5.0-10.0 | 10-14 | 10.0-14.0 | 16.0 - 25.0 | 16.0 - 25.0 |
|
TL (length of thread)
|
8.00 | 8.00 | 10.00 | 10.00 | 10.00 | 10.00 | 18.0 | 18.0 |
|
TD (hole size mm)
|
12.00 | 12.00 | 16.00 | 16.00 | 20.00 | 20.00 | 32.0 | 32.0 |
|
Thread Size
|
M12 x 1.5 | M12 x 1.5 | M16 x 1.5 | M16 x 1.5 | M20 x 1.5 | M20 x 1.5 | M32 x 1.5 | M32 x 1.5 |
|
Colour
|
Grey | Black | Grey | Black | Grey | Black | Light Grey | Black |
