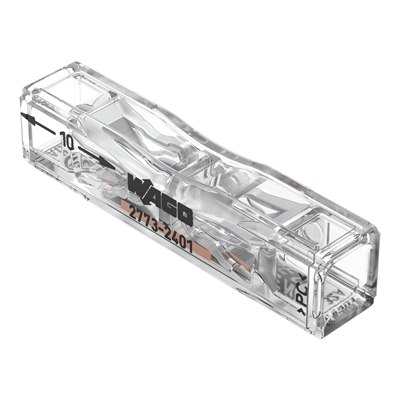

WAGO 2773-2401 PUSH WIRE® inline connector 32A
by Wago

The WAGO 2773-2401 Push Wire Inline Connector 32A offers a quick, efficient, and secure method for connecting electrical wires in a wide range of applications.
View product specifications
Key Features:
- Solid Conductors Compatibility: Works with solid conductors from 0.75mm² to 4mm² (18 AWG to 12 AWG) for flexible, secure connections.
- Stranded Conductors Compatibility: Also supports stranded conductors from 1.5mm² to 4mm² for versatility in different wiring configurations.
- Nominal Voltage: Rated for 450V AC, making it suitable for a variety of domestic, commercial, and industrial electrical installations.
- Rated Current: This connector can handle up to 32A, ensuring robust power transmission for a wide range of applications.
- Temperature Tolerance: Designed to withstand maximum air temperatures of 85°C, with a continuous operating temperature of 105°C for safe and reliable performance in diverse environments.
- Transparent Cover & Housing: The transparent housing allows for visual inspection of wire connections, ensuring proper installation at a glance.
- Durable and Safe Material: Constructed from polycarbonate (PC), the connector offers excellent insulation, while the flame retardant UL94-V2 rating ensures safety in case of fire.
- UL 486C Approval: This connector is UL 486C approved, meeting high standards of electrical safety and reliability.
- Contact Material: Electrolytic copper (ECu) contact material with tin contact plating ensures durable, corrosion-resistant connections.
Compact and Efficient Design:
- Dimensions (WxHxD): 6.8mm x 6.15mm x 29mm for a compact, space-efficient installation that fits into tight spaces.
- Weight: Only 1.4g, ensuring ease of handling and installation without compromising strength or durability.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
Specification | 2773-2401 |
---|---|
Customs Tariff No.
|
85369010000 |
GTIN
|
4066966321630 |
Stranded Conductors
|
1.5mm² to 4mm² |
Nominal Voltage
|
450v AC |
Rated Current
|
32A |
Wire size
|
18AWG to 12AWG |
