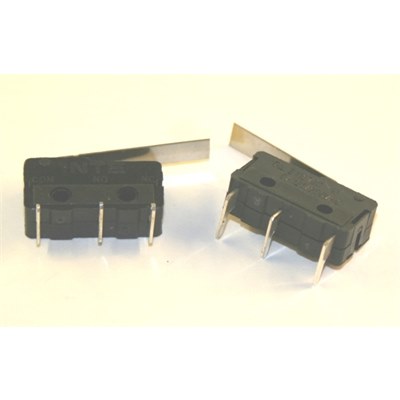

V4 R/A PCB Type Medium Lever
by CamdenBoss
A range of miniature SPDT microswitches, V4 size, manufactured to a high specification. Incorporating a long life stainless steel spring system, and silver contacts.
RoHS compliant
| Rating: | 5A 250VAC resistive |
| Dielectric strength: | 1000VAC |
| Mechanical life: | 500,000 operations minimum |
| Terminal styles: | Solder/Faston: | 3.2W x 4.0L x 0.5 mm |
| PCB Terminal: | 1.2W x 4.7L x 0.5 mm |
Operating | Pre-travel | Overtravel | Movement | Actuator | |
Force | (max) | (min) | differential | length | |
| Button | 90 g | 0.6 mm | 0.5 mm | 0.1 mm | - |
| Short Lever | 42 g | 2.6 mm | 1.0 mm | 0.6 mm | 14.5 mm |
| Medium Lever | 27g | 4.2mm | 1.6mm | 0.9mm | 22.6mm |
| Long lever | 25g | 4.7mm | 1.0mm | 1.8mm | 44.0mm |
| Roller Lever | 42 g | 2.6 mm | 1.0 mm | 0.6 mm | 14.5 mm |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-119 |
|---|---|
|
Description
|
R/A PCB Type Medium Lever |
