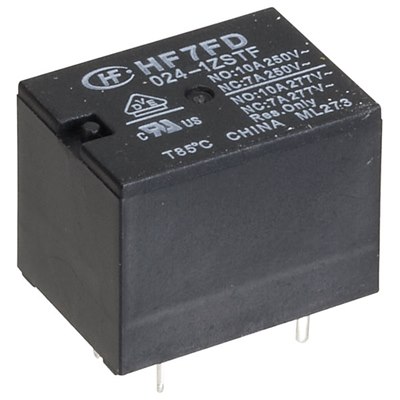

Relay HF-7FD 10A 24VDC HF7FD0241ZSTF
by Hongfa
The Hongfa HF7FD series offers high-performance switching in a sub-miniature footprint, making it the ideal choice for dense PCB layouts. These SPCO (1 Form C) power relays are engineered for reliability with an IP67 sealed construction, protecting the internal components from environmental contaminants and flux during soldering.
Sub-miniature high performance SPCO relay for direct PCB mounting.
IP67 sealed construction. VDE & UL approved.
RoHS compliant
| Contact form: | 1CO (SPDT) |
| Contact rating: | 12A 125VAC / 10A 250VAC |
| Contact material: | AgSnO2 |
| Operate/release: | 10ms/5ms max. |
| Coil consumption: | 360mW |
| Mechanical life: | 1x107 operations |
| Temperature range: | -40°C to +85°C |
| Dimensions: | 22.5L x 16.5H x 16.5W |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 821-217 |
|---|---|
|
Max. Switching Capacity
|
2500VA/210W |
|
Coil Resistance
|
1600 ohms |
|
Coil Voltage
|
24VDC |
