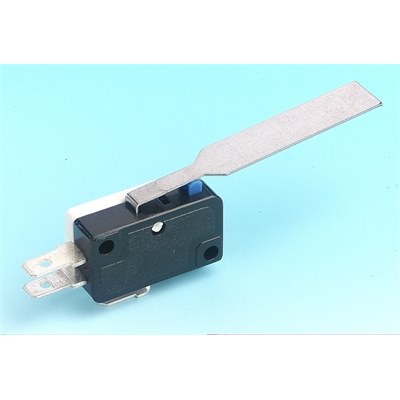

V3 Paddle Lever microswitch
by JPR
A high quality V3 size microswitch rated at 3A 250VAC. The switch incorporates a wide and long paddle lever which is ideal for quick alignment in security and safety applications. Ideally suited for use as a tamper switch in alarm panels and bell boxes. Silver plated contacts. RoHS compliant
| Rating: | 3A 250VAC |
| Dielectric strength: | 1000VAC |
| Mechanical life: | 500,000 operations min. |
| Lever dimensions: | 9mm x 62mm. |
| Terminals: | Solder/Faston 6.35W x 10L x 0.8mm |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-830 |
|---|---|
|
Description
|
Paddle Lever Microswitch |
