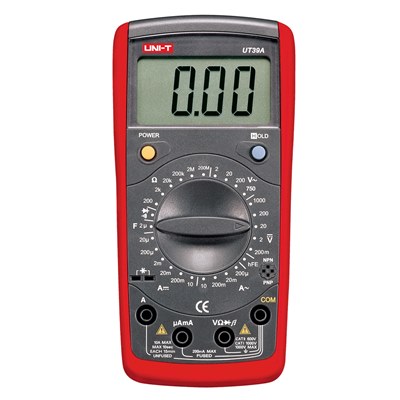

Uni-T UT39A General Digital Multimeter
by Uni-T
A highly reliable 3½ digit general purpose digital multimeter with data hold function.
29 ranges including:
Wide range of functions, including capacitance test, transistor test
and continuity buzzer.
Ideal for general maintenance work.
Supplied complete with test leads, holster, battery and manual.
View product specifications
29 ranges including:
- Continuity test
- Transistor test
- Capacitance test
- Diode test
Wide range of functions, including capacitance test, transistor test
and continuity buzzer.
Ideal for general maintenance work.
Supplied complete with test leads, holster, battery and manual.
Size: 172x83x38mm
Weight: 310g approx.
RoHS compliant
| Basic Functions | Range | Best Accuracy |
| DC Voltage | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
| AC Voltage | 2V/20V/200V/750V | ±(0.8%+3) |
| DC Current | 20µA/200µA/2mA/20mA/200mA/10A | ±(0.8%+1) |
| AC Current | 200µA/20mA/200mA/10A | ±(1%+3) |
| Resistance | 200Ω/2kΩ/20KΩ/200KΩ/2MΩ/200MΩ | ±(0.8%+1) |
| Capacitance | 2µF | ±(4%+3) |
| Special Functions | ||
| Diode test | Yes | |
| Continuity Buzzer | Yes | |
| Transistor test | Yes | |
| Sleep Mode | Yes | |
| Low Battery Display | Yes | |
Input Impedance for DC Voltage Measurement | 10MΩ | |
| Max. Display | 1999 | |
| Display size: | 61x32mm | |
| Power | 9V Battery (PP3) |
