Peak Atlas Triac & Thyristor Analyser

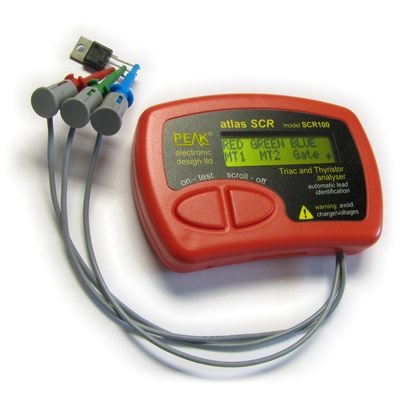

The Peak Atlas SCR is specifically designed to automatically analyse a wide range of Triacs and Thyristors (SCRs). Connect the part any way round and press test. The part type is identified (Triac or Thyristor), the pinout is identified and the gate sensitivity is displayed in 1 of 9 sensitivity categories as well as gate voltage. Suitable for parts that require a gate trigger current from less than 100uA up to 90mA. Load tests are performed with an internally generated load of 12V at 100mA, all from a single AAA alkaline battery (supplied). Not designed for in-circuit use.

Features:

• Automatic pinout detection and identification, connect any way round.
• Automatic Triac/Thyristor detection.
• Generates gate currents from 100uA up to 90mA.
• Gate sensitivity category displayed.
• Constant load test of 12V at 100mA regardless of battery condition.
• Supplied with gold plated red/green/blue universal hook probes.
