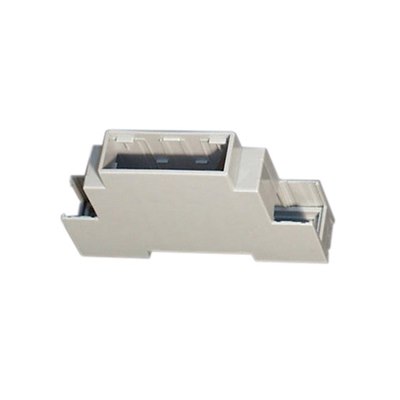

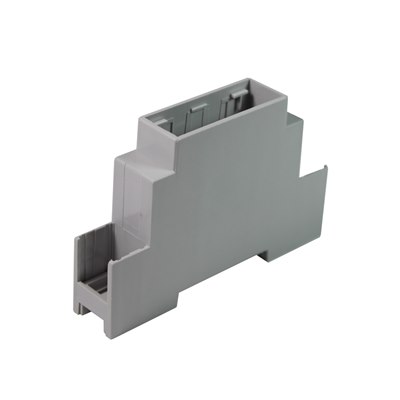

CamdenBoss CNMB/1 DIN Rail Module Box
- Snap Fit modular design
- Base fits 35mm DIN Rail or directly to flat surface
- Moulded in light grey UL94-V0 flame retardant polycarbonate
- Carries up to 3 PCB's horizontally or 2 vertically

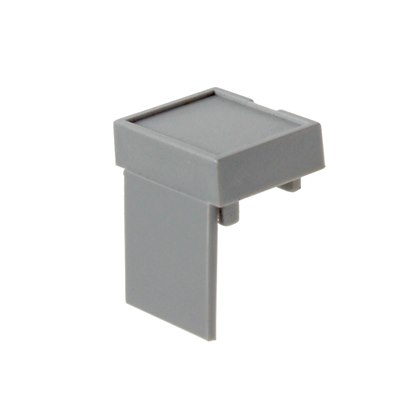

- Snap fit terminal cover options for IP20 finger protection

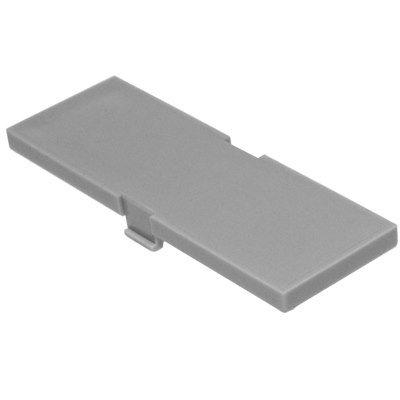

- Snap in covers available in grey and clear
- Open top as standard, solid top, vented.
- Covers and terminal guards ordered separately and can be supplied in kits.
- UL Rating - UL94-V0
- IP Rating - IP20
DIN Rail Box Vented CNMB/1V/2 and Extended CNMB/1W/2 available. Please call for more information.
Please click here for more information on customisation
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 881-527 | 881-528 | 881-529 | 881-530 | 881-531 | 881-532 | 881-533 |
|---|---|---|---|---|---|---|---|
|
Weight (g)
|
16g | 2g | 5g | 1g | 1g | 1g | 5g |
|
Material
|
Polycarbonate | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic |
|
Dimensions LxWxH (mm)
|
17.5 x 58 x 90mm | 14 x 42 x 5mm | 17.5 x 90 x 58mm | 175 x 14.3 x 20mm | 17.5 x 14.3 x 20 mm | 17.5 x 14.3 x 20mm | 17.5 x 90 x 58mm |
