1591DBK Black F/R Enclosure 150Lx80Wx50H

1591 Series Flame Retardant, General Purpose, Flanged Lid or Bottom Key Features

ABS Plastic Multipurpose Enclosures w/ Card Guides

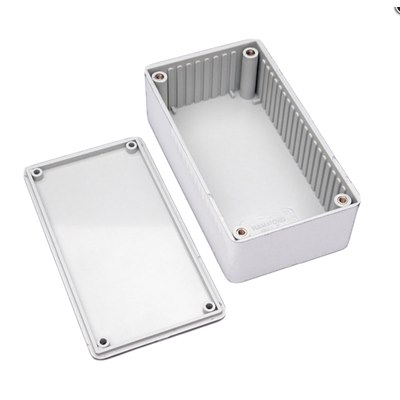

• Ideally suited for vertical mounting of printed circuit boards (internal side walls include moulded in card guides - see photo to the right).
• Integral card guides accept 1.5 mm (0.062”) P.C. cards.
• Lap joint construction provides protection against access of dust and splashing water.
• Designed to meet IP54.
• Standard versions are moulded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
• Economy versions are moulded from general purpose (not flame-retardant) plastic.
• On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings.
• Perfect for applications when repetitive assembly and disassembly are required.
• Economy versions are assembled with self tapping screws into fully plastic posts.
• Black enclosures include black screws, while all others include standard nickel finish screws.
• STANDARD LEAD TIME 5-7 DAYS
• Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings.
• Perfect for applications when repetitive assembly and disassembly are required.
• Black enclosures include black screws, all others - standard nickel finish screws.
