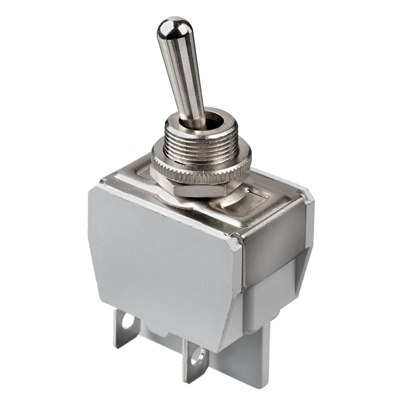

Apem 600H Series Toggle Switches High Amperage
by Apem
Apem 600 series high current industrial toggle switches. Suitable for motor load and power applications
up to 15A 250VAC. All types have nickel plated brass levers. Momentary action, long lever type (800-018)
is also fitted with plastic lever cover, and is particularly suitable for mobility applications.
| Rating: | 15A 250VAC (on-off & on-on types) 10A 250VAC (centre-off types) |
| Dielectric Strength: | 2000V RMS |
| Temperature range: | -20° to +55°C. |
| Insulation resistance: | >1000MΩ |
| Contact resistance: | <10mΩ maximum initial |
| Electrical life: | 10,000 make/break cycles at full load |
| Case material: | Polyester UL94-V0 |
| Contact material: | Silver/nickel-alloy |
| Dimensions: | Height: 15.0mm | Width: 29.5mm | Depth: 14.0mm |
| Panel cutout 12.2mm |
UL, CSA and VDE approved. RoHS compliant |
For biased switches (on) denotes momentary action
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Each Exc VAT (Inc VAT)
1+
25+
100+
Add to basket
Request Lead Time
Order Code:
Description:
SPST on-off 631H/2 Industrial toggle switch
£3.270
(£3.924)
£2.770
(£3.324)
£2.520
(£3.024)
Price Each Exc VAT (Inc VAT)
Stock Qty: 7
1+ @ £3.270
(£3.924)
25+ @ £2.770
(£3.324)
100+ @ £2.520
(£3.024)
hide price breaks
view price breaks
Stock Qty: 7
Order Code:
Description:
SPDT on-on 636H/2 Industrial toggle switch
£3.900
(£4.680)
£3.300
(£3.960)
£3.000
(£3.600)
Price Each Exc VAT (Inc VAT)
Stock Qty: 71
1+ @ £3.900
(£4.680)
25+ @ £3.300
(£3.960)
100+ @ £3.000
(£3.600)
hide price breaks
view price breaks
Stock Qty: 71
Order Code:
Description:
SPDT on-off-on 639H/2 Industrial toggle switch
£4.020
(£4.824)
£3.400
(£4.080)
£3.090
(£3.708)
Price Each Exc VAT (Inc VAT)
Stock Qty: 123
1+ @ £4.020
(£4.824)
25+ @ £3.400
(£4.080)
100+ @ £3.090
(£3.708)
hide price breaks
view price breaks
Stock Qty: 123
Order Code:
Description:
SPDT (on)-off-(on) 637H/2
£4.750
(£5.700)
£3.790
(£4.548)
£3.430
(£4.116)
Price Each Exc VAT (Inc VAT)
Stock Qty: 49
1+ @ £4.750
(£5.700)
25+ @ £3.790
(£4.548)
100+ @ £3.430
(£4.116)
hide price breaks
view price breaks
Stock Qty: 49
£4.851
(£5.821)
£4.354
(£5.225)
£3.947
(£4.736)
Price Each Exc VAT (Inc VAT)
Stock Qty: 93
1+ @ £4.851
(£5.821)
25+ @ £4.354
(£5.225)
100+ @ £3.947
(£4.736)
hide price breaks
view price breaks
Stock Qty: 93
Order Code:
Description:
DPST off-on 641H/2 Industrial Toggle Switch
£6.650
(£7.980)
£5.630
(£6.756)
£5.120
(£6.144)
Price Each Exc VAT (Inc VAT)
Stock Qty: 47
1+ @ £6.650
(£7.980)
25+ @ £5.630
(£6.756)
100+ @ £5.120
(£6.144)
hide price breaks
view price breaks
Stock Qty: 47
Order Code:
Description:
DPDT on-on 646H/2 Industrial toggle switch
£7.610
(£9.132)
£6.440
(£7.728)
£5.850
(£7.020)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £7.610
(£9.132)
25+ @ £6.440
(£7.728)
100+ @ £5.850
(£7.020)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
DPDT on-off 648H/2 Industrial toggle switch
£7.970
(£9.564)
£6.750
(£8.100)
£6.130
(£7.356)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £7.970
(£9.564)
25+ @ £6.750
(£8.100)
100+ @ £6.130
(£7.356)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
DPDT on-off-on 649H/2 Industrial toggle switch
£7.610
(£9.132)
£6.440
(£7.728)
£5.850
(£7.020)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £7.610
(£9.132)
25+ @ £6.440
(£7.728)
100+ @ £5.850
(£7.020)
hide price breaks
view price breaks
Stock Qty: 0
Product Specifications
| Specification | 800-015 | 800-016 | 800-017 | 800-028 | 800-018 | 801-015 | 801-016 | 801-017 | 801-018 |
|---|---|---|---|---|---|---|---|---|---|
|
Description
|
SPST on-off | SPDT on-on | SPDT on-off-on | SPDT (on)-off-(on) | SPDT (on)-off-(on) | DPST off-on | DPDT on-on | DPDT on-off | DPDT on-off-on |
|
Apem P/No.
|
631H/2 | 636H/2 | 639H/2 | 637H/2 | 637H/2 | 641H/2 | 646H/2 | 648H/2 | 649H/2 |
