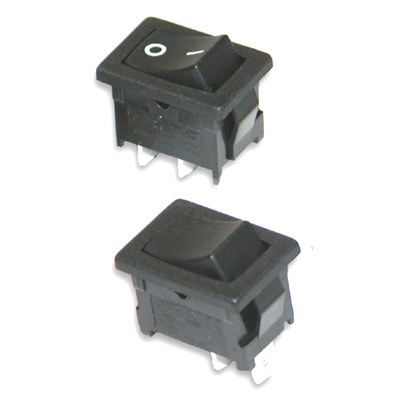

SPST Rocker switches - PIC
by PIC
Miniature single pole rocker switches with curved actuators. Matt black body and rocker.
UL, CE, ENEC & VDE approved.
| Panel cutout: | 19.4x13.1mm |
| Rating: | 10(6)A 250VAC |
| Contact resistance: | Max 30mΩ |
| Insulation resistance: | Min 500MΩ at 500VDC |
| Mechanical life: | >105 cycles |
| Termination: | 4.8 x 0.8mm crimp connections |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-879 | 800-880 |
|---|---|---|
|
Description
|
SPST Plain black rocker | SPST Black O/- rocker |
