Rocker Switch 12V 10A ABRR Series
by Everel
Circular SPDT rocker switch for 12VDC use, with concave illuminated rocker. Snap-fit into 20mm panel hole.
UL, CSA, VDE, SEMKO, NEMKO, DEMKO approved.
RoHS compliant
| Contact rating: | 10A 12VDC |
| Contact resistance: | <30mΩ |
| Operating force: | 300-600gf |
| Insulation resistance: | 100MW @500VDC min. |
| Operational life: | >10,000 make/break cycles |
| Temperature range: | -12 to +85°C |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-344 | 800-345 |
|---|---|---|
|
Description
|

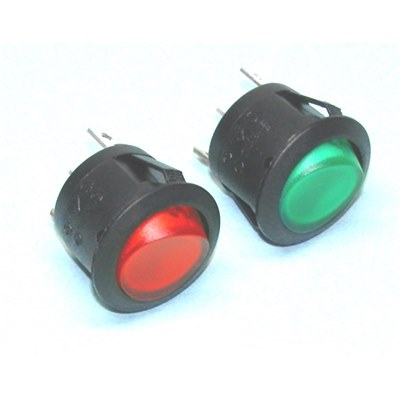

SPDT Red illuminated ABRR011 | SPDT Green illuminated ABRR013 |
