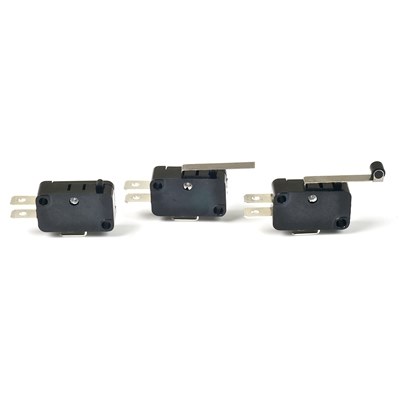

V3 microswitches - 10A
High quality V3 size SPDT microswitches, with coil spring mechanism, silver contacts, and silver plated brass terminals.RoHS compliant
| Rating: | 10A 250VAC resistive |
| Dielectric strength: | 1000VAC |
| Mechanical life: | 500,000 operations minimum |
| Terminal style: | Solder/Faston: 6.35W x 10L x 0.8 mm |
Operating | Release | Pre-travel | Overtravel | Movement | Actuator | |
Force | Force | (max) | (min) | differential | length | |
| Button | 285 g | 40 g | 1.2 mm | 1.2 mm | 0.2 mm | - |
| Lever | 130 g | 25 g | 3.0 mm | 2.2 mm | 0.5 mm | 35.6 mm |
| Long Lever | 75 g | 10 g | 5.5 mm | 4.2 mm | 0.9 mm | 59.5 mm |
| Roller Lever | 140 g | 20 g | 3.0 mm | 2.1 mm | 0.45 mm | 34.0 mm |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-120 | 800-125 | 800-127 | 800-130 |
|---|---|---|---|---|
|
Description
|
Button | Lever | Long Lever | Roller lever |
