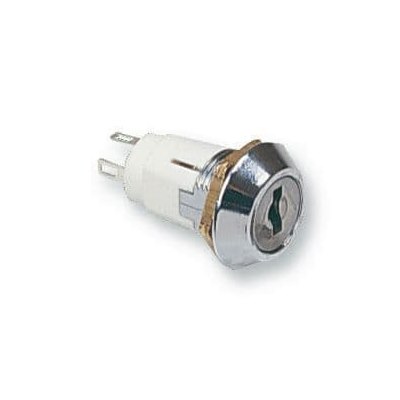

DPDT Keyswitch random. 1 position removable SRL-5-M-D-2
by Lorlin
Single and double pole snap fit key lock switch. Available in 2 and 3 positions with 60° and 90° indexing. Key out options in one or all positions. The compact lock switch has a behind panel depth of less than 30mm. Same key or 200 different key combinations. Options include UL-V0 rated material, gold and gold flash contacts. Available with centre off facility
. Weatherproof covers are available for these switches.
All switches supplied with 2 keys and all fixing hardware..
| Contact rating: | 1A @ 24V ac/dc |
| Proof voltage: | 750VDC (initial) |
| Contact material: | Brass CZ108, Ag Plated |
| Contact resistance: | <20mΩ (initial) |
| Insulation resistance: | >999M Ohm @ 500Vdc (initial) |
| Operating life: | >10,000 Cycles |
| Temperature range: | -20° to +65°C |
| Key rotation: | SPDT-90° DPDT-60° |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-069 |
|---|---|
|
Manufacturer Ref.
|
SRL-5-M-D-2 |
|
Description
|
DPDT random key - remov.1 pos. |
