Comus CM1320-0 Mercury Tilt Switch
by Comus

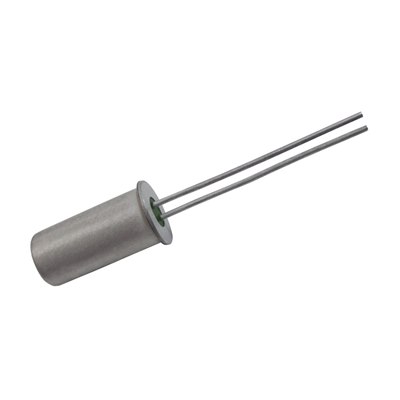

Miniature mercury tilt switch, encapsulated in a nickel plated steel case.
The device is designed to be mounted horizontally, and will operate when tilted above or below horizontal.
Make to Break changeover is typically within 15°.
| Contact form: | Normally open | |
| Switching load: | 0.4A 240VAC max | |
| Contact resistance: | 3W maximum @ 3.0V 1 mA | |
| Maximum break angle: | 15° above horizontal | |
| Maximum make angle: | 5° below horizontal | |
| Body Dimensions: | Length: | 10.2 mm |
| Diameter: | 4.7 mm | |
| Lead Dimensions: | Length: | 16 mm |
| Diameter: | 0.46 mm |
Comus type CM1320-0. This product is not RoHS compliant - contains 0.99g Mercury
WARNING - Mercury is toxic, these devices should NOT be cut open.
