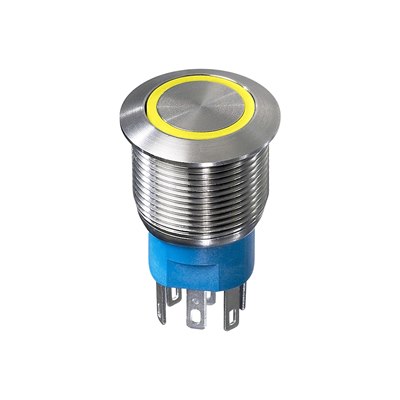

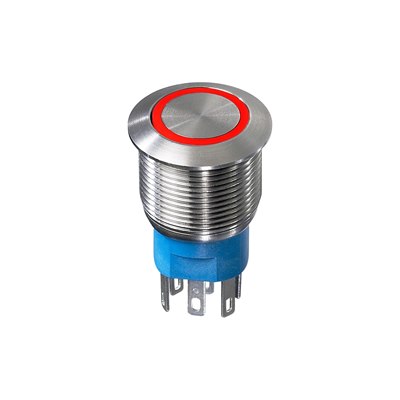

APEM Vandal Resistant Illuminated 19mm Switch
by Apem
- Low profile vandal resistant security switches with illuminated ring.
- Momentary action (NC/NO).
- Nickel plated brass bushing and plunger, silver contacts.
- Through panel mounting. 2.8mm faston/solder terminals.
- Flat actuator with choice of 4 illuminated ring colours.
- Supplied with all fixing hardware.
| Rating: | 1A max. resistive 30V DC |
| Contact resistance: | <100mΩ |
| Insulation resistance: | >10MΩ 500V DC |
| Operating life: | >250,000 cycles full load. |
| Dims: | 22.0 dia x 24mm H. |
| Panel cutout: | 19.2mm |
| Max panel thickness: | 10.5mm |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-504 | 800-505 | 800-506 | 800-507 |
|---|---|---|---|---|
|
Description
|
19mm switch - Red LED illuminated. AV96022000840K | 19mm switch - Green LED illum. AV9V022000840K | 19mm switch - Yellow LED illum. AV95022000840K | 19mm switch - Blue LED illum. AV91022000840K |
