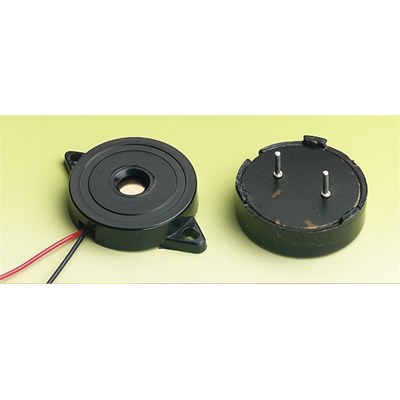

Piezo Transducers - 24mm
Externally driven type, requiring an external oscillator circuit.
| Operating voltage (V) p-p: | 3 to 30 |
| Operating current (mA): | 2 |
| Oscillating frequency (kHz): | 3.8 ± 0.5 |
| Sound output at 30 cm. 9V p-p (db) min: | 75 |
| Temp. range: | -20°C to +65°C |
| Dims: | 24mm dia. x 5.5mm h. |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-120 |
|---|---|
|
Model
|
HPE-120 |
|
Type
|
Wire-lead |
