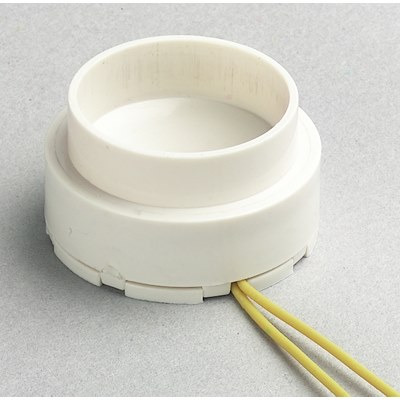

Piezo Transducer 30mm - High output
Externally driven stainless steel piezo element in plastic housing with wire leads.
| Rated voltage: | 200V p-p |
| Capacitance: | 22000pF ±30% @1KHz |
| Resonant frequency: | 3.3KHz ±0.5 |
| Sound output @ 30cm: | 110dB ±5 |
| Temp. range: | -20° to +60°C |
| Dims: | 30mm dia. x 17mm h. |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-150 |
|---|---|
|
Model
|
PS27-3011 |
|
Type
|
Wire-lead |
