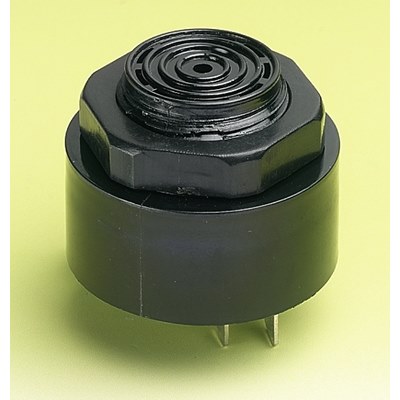

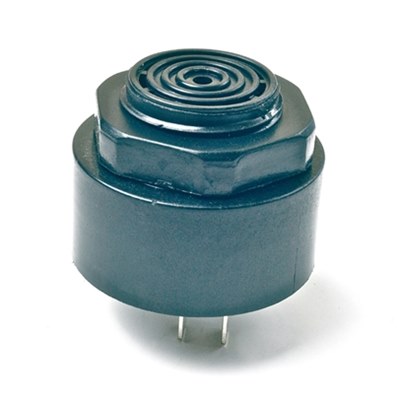

Piezo Alarms - High Output
by JPR
High-output panel mounting piezo sounders with built-in threaded collar and fixing nut.
Available with pulse tone (2 terminal), or selectable pulse/continuous tone (3 terminal).
6.35mm faston terminals. Max panel thickness 5mm.
Epoxy sealed base permits board cleaning processes.
| Operating Voltage: | 6-28Vdc |
| Operating Current: | 15mA at 12Vdc |
| Frequency: | 2.9 kHz ± 0.5 |
| Sound output: | 80db min. at 9Vdc at 1m. |
| Temperature range: | -20°C to +60°C |
| Dims: | 43mm dia. x 20mm h. (behind panel) |
| Panel cutout 29mm. |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-359 |
|---|---|
|
Model
|
HPE-352T4 |
|
Type
|
Continuous & Pulse-tone |
