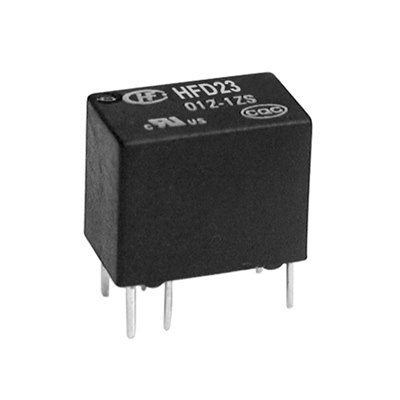

Hongfa Sub-miniature Relays HFD23 - SPCO 1A

The Hongfa HFD23 relay is an ultra-miniature, single pole changeover (SPCO) relay designed for applications requiring low power consumption and reliable switching. With a compact footprint and fully sealed construction, it offers long service life and consistent performance in demanding environments

• Contact configuration: 1CO (SPDT)


• Contact rating: 1A at 30VDC / 0.5A at 125VAC


• Coil consumption: 150 mW for efficient operation


• Operate / release time: 5 ms / 5 ms


• Coil material: AgNi with Au plating for improved durability


• Mechanical life: 10 million operations


• Operating temperature range: –30°C to +70°C


• Dimensions: 12.5 mm (L) × 10 mm (H) × 7.5 mm (W)

Key features:

• Ultra-miniature design for space-critical applications


• Very low power consumption


• Fully sealed housing for enhanced reliability


• UL approved and RoHS compliant

Ideal for use in consumer electronics, instrumentation, communication devices, and control equipment.
