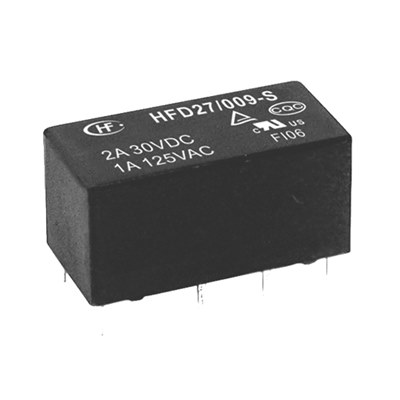

Hongfa Miniature BT51 Relays HFD27(S) - DPCO 1A
by Hongfa
Miniature double pole changeover relay with high sensitivity coil. DIL or direct PCB mounting. IP67 sealed UL approved
| Contact form: | 2CO (DPDT) |
| Contact rating: | 1A 125VAC/2A 30VDC |
| Contact material: | AgNi |
| Operate/release: | 6ms/4ms |
| Coil consumption: | 200mW |
| Mechanical life: | 1x108 operations |
| Temperature range: | -400°C to +85°C |
| Dimensions: | 20.2L x 11.5H x 10W |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 821-321 | 821-322 | 821-323 |
|---|---|---|---|
|
Max. Switching Capacity
|
125VA/60W | 125VA/60W | 125VA/60W |
|
Coil Resistance
|
125 ohms | 720 ohms | 2880 ohms |
|
Coil Voltage
|
5VDC | 12VDC | 24VDC |
