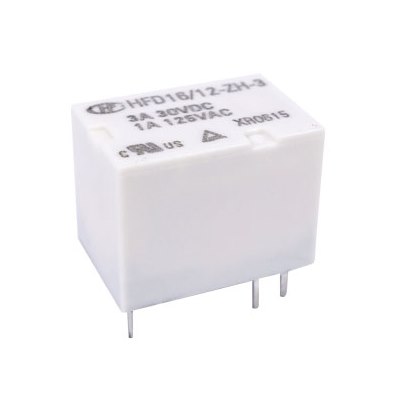

12V 1A DIL Relay HFD16/12-ZH3N
by Hongfa
- 5A switching capacity
- Standard PCB layout
- UL insulation system: Class F available
- RoHS compliant
- Contact rating: 3A 30 V DC
- (res load) 1A 125 VAC
- Switching voltage: 220 V DC / 250VAC
- Outline dimensions: 15.7 x 10.6 x 11.8 mm
- Plastic sealed and flux proofed types available.
- In accordance to IEC 60335-1 available
Full Hongfa range available, please call for further details.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 821-407 |
|---|---|
|
Coil Voltage
|
12VDC |
|
Coil Resistance
|
700 ohms |
|
Max. Switching Capacity
|
625VA / 90W |
